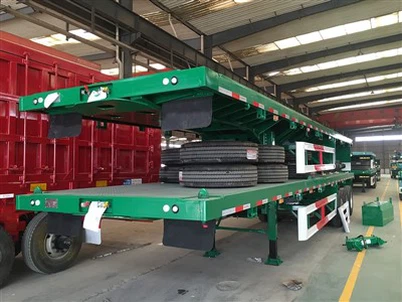

20 ft Thawv Trailer
20 ft thawv trailer feem ntau yog siv hauv cov chaw nres nkoj, kev thauj mus los, chaw nres nkoj thiab lwm qhov chaw. Kev txheeb xyuas qhov tseeb, 42 toughness Rib Design.Ua kom muaj kev nyab xeeb thiab nqa lub peev xwm ntawm lub trailer. 20 ko taw flatbed trailers rau kev muag khoom siv lub zog siab T700 steel nrog titanium cov ntsiab lus ntawm 0.98 ‰, uas ua kom lub zog thiab lub zog ntawm cov nqaj thiab ncej, thiab ntxiv dag zog rau compression kuj, load kuj thiab kev nyab xeeb ntawm lub tsheb lub cev.
Hauj lwm lawm
20 ft thawv trailer feem ntau yog siv hauv cov chaw nres nkoj, kev thauj mus los, chaw nres nkoj thiab lwm qhov chaw. Kev txheeb xyuas qhov tseeb, 42 toughness Rib Design.Ua kom muaj kev nyab xeeb thiab nqa lub peev xwm ntawm lub trailer. 20 ko taw flatbed trailers rau kev muag khoom siv lub zog siab T700 steel nrog titanium cov ntsiab lus ntawm 0.98 ‰, uas ua kom lub zog thiab lub zog ntawm cov nqaj thiab ncej, thiab ntxiv dag zog rau compression kuj, load kuj thiab kev nyab xeeb ntawm lub tsheb lub cev.
|
20FT FLATBED TRAILER |
40FT FLATBED TRAILER |
45FT FLATBED TRAILER |
|
Hom: Tsheb Master |
Hom: Tsheb Master |
Hom: Tsheb Master |
|
2 axles / 3 qag |
2 axles / 3 qag / 4 qag |
3 axles / 4 qag |
|
20ft Thawv / Cargo Loading |
1 * 40ft / 2 * 20ft Thawv / Cargo Loading |
1 * 40ft / 1 * 45ft Thawv / Cargo Loading |
|
Chaw thau khoom muaj peev xwm: 20 - 60 Tons |
Chaw thau khoom muaj peev xwm: 30 - 80 Tons |
Chaw thau khoom muaj peev xwm: 30 - 80 Tons |
|
Hom: Gooseneck Hom / Tandem Hom |
Hom: Gooseneck Hom / Tandem Hom |
Hom: Gooseneck Hom / Tandem Hom |
|
Main Beam |
||
|
Khoom siv: Q345 / T700 |
Khoom siv: Q345 / T700 |
Main Beam Khoom: Q345 / T700 |
|
Upper Phaj Thickness: 12mm |
Upper Phaj Thickness: 16mm |
Upper Phaj Thickness: 16mm |
|
Middle Phaj Thickness: 6mm |
Middle Phaj Thickness: 10mm |
Middle Phaj Thickness: 10mm |
|
Sab Phaj Thickness: 14mm |
Sab Phaj Thickness: 18mm |
Sab Phaj Thickness: 18mm |
|
Qhov siab: 500mm |
Qhov siab: 500mm |
Qhov siab: 500mm |
|
Platform Thickness: 2.5 hli |
Platform Thickness: 3 hli |
Platform Thickness: 3 hli |
|
Dimension |
||
|
L * W * H: 7000mm * 2500mm * 1570mm |
L * W * H: 12400mm * 2500mm * 1570mm |
L * W * H: 13950mm * 2500mm * 1600mm |
|
Qag |
||
|
2/3 Axles * 13/16 Tuj VEHICLE MASTER/FUWA/BPW/Lwm yam |
2/3 Axles * 13/16 Tuj VEHICLE MASTER/FUWA/BPW/Othe |
2/3 Axles * 13/16 Tuj VEHICLE MASTER/FUWA/BPW/Lwm yam |
|
Lub log |
||
|
12R22.5 (8/12 Pieces) Linglong/Triangle/Double-Npib/Bridgestone/ Lwm Hom |
12R22.5 (8/12 Pieces) Linglong/Triangle/DoubleCoin/Bridgestone/ Lwm Hom |
12R22.5 (8/12 Pieces) Linglong/Triangle/Double-Npib/Bridgestone/ Lwm Hom |
|
Rim |
||
|
9. 00*22.5 (8/12 Pieces) Hlau / Aluminium |
9. 00*22.5 (8/12 Pieces) Hlau / Aluminium |
9. 00*22.5 (8/12 Pieces) Hlau / Aluminium |
|
Nplooj Caij nplooj ntoos hlav |
||
|
90mm * 13mm * 10 Pieces 90mm * 16mm * 10 Pieces |
90mm * 13mm * 10 Pieces 90mm * 16mm * 10 Pieces |
90mm * 13mm * 10 Pieces 90mm * 16mm * 10 Pieces |
|
King Pin |
||
|
#50(2")/#90(3.5"), JOST/Lwm hom |
#50(2")/#90(3.5"), JOST/Lwm hom |
#50(2")/#90(3.5"), JOST/Lwm hom |
|
tsaws iav |
||
|
28 Tuj Ob Ceev, JOST / Lwm Hom |
28 Tuj Ob Ceev, JOST / Lwm Hom |
28 Tuj Ob Ceev, JOST / Lwm Hom |
|
Twist Lock |
||
|
4 Teeb |
12 Teeb |
12 Teeb |
|
Tsheb Painting |
||
|
Electrophoresis painting |
Electrophoresis painting |
Electrophoresis painting |
Peb muaj ntau tus kws tshaj lij tsim qauv, raws li koj xav tau los tsim cov qauv tsim nyog tshaj plaws thiab ua tau raws li koj cov kev xav tau.
Packing & Shipping
1. 3 teev stacked (los ntawm Bulk Cargo Ship, Ro-ro Nkoj, lossis Kev Thauj Mus Los hauv av)
2. Txiav lub nraub qaum uas tuaj yeem thauj khoom ob zaug hauv ib lub thawv 40 ft;
3. Khaws lub trailer qub tab sis thauj ob lub teeb hauv ib lub thawv 45 ft.
Tiv tauj xov tooj:
Shandong Haoyue Tsheb Co., Ltd.
Quanpu industrial park, Liangshan lub teb chaws, Jinan, Shandong xeev, Suav
Lub Vev Xaib: www.teopp.com
WhatsApp/Mobile NO.: ntxiv rau 86-13280060602
Cim npe nrov: 20ft thawv trailer
