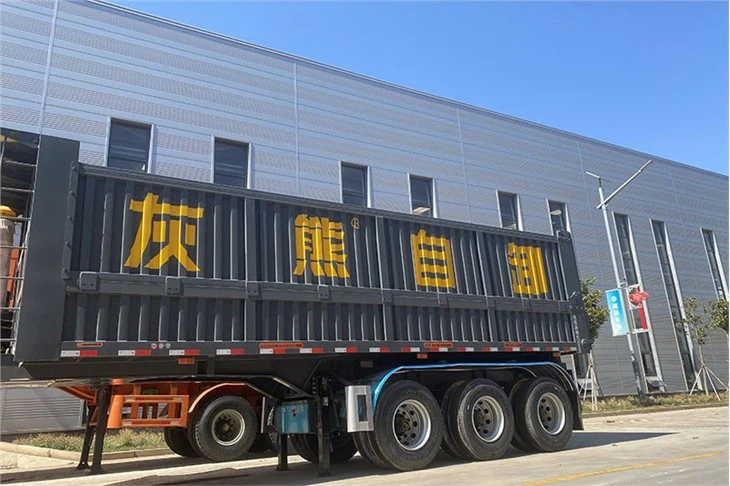

3 Qag Tipper Semi Trailer

Tipper trailer tseem hu ua pob tseg tsheb trailer, tipper semi trailer, sab tipper trailer, kawg pob tseg trailer, rear dump trailer.
Hauv engineering engineering, nws feem ntau ua haujlwm nrog excavators, loaders, siv conveyors thiab lwm yam siv tshuab. Lub tipper semi trailer carriage adopts rear-dump thiab sab-dump self-unloading txoj kev, uas txhim kho cov efficiency ntawm tej khoom thauj los ntawm lub loader. Lub tsheb thauj khoom semi-trailer tipper carriage yog inclined ntawm ib lub kaum ntse ntse, kom cov khoom thauj hauv lub tsheb thauj mus los. Lub zog ntawm cov pob tseg tsheb trailer cav yog siv los ua kom tiav cov khoom pov tseg.









Nov yog qee qhov kev qhia tshwj xeeb rau 3 qag tipper semi trailer:

Trailer hnyav: nruab nrab ntawm 9, 000 thiab 15, 000 phaus
Load peev: 20-30 tons
Txoj kev pov tseg: Feem ntau cov pob tseg cov tsheb thauj khoom siv lub tog raj kheej hydraulic nqa lub thawv pov tseg thiab ntim cov khoom thauj.

Hom ncua kev kawm ntawv: Cua caij tsheb ncua kev kawm yog haum rau 3 qag tipper semi trailers

Log log loj: 11R22.5

Nres hom: Cua lossis hydraulic nres yog muaj nyob rau ntawm tipper semi trailers

Hitch hom: Feem ntau dtipper semi trailers siv lub log thib tsib lossis gooseneck hitch los txuas rau lub tsheb cab.

Hom Lub Cev: Lub thawv pov tseg feem ntau yog ua los ntawm cov hlau thiab ntsuas ntawm 24 thiab 40 ko taw ntev

Pob tseg lub kaum sab xis: Qhov siab tshaj plaws pob tseg lub kaum sab xis rau 3 qag tipper semi trailer feem ntau nyob ib ncig ntawm 45 degrees, txawm hais tias qhov no tuaj yeem sib txawv nyob ntawm tus qauv tsim ntawm lub trailer.

Sab phab ntsa qhov siab: Sab phab ntsa ntawm lub thawv khib nyiab feem ntau yog nyob nruab nrab ntawm 3 thiab 5 ko taw hauv qhov siab, txawm hais tias qhov no tuaj yeem sib txawv nyob ntawm qhov tshwj xeeb trailer thiab nws cov phiaj xwm siv.

Cov no yog qee qhov kev qhia tshwj xeeb rau lub 3 qag tipper semi trailer, thiab tuaj yeem pab muab tswv yim rau koj txog dab tsi yuav tsum tau los ntawm ib qho trailer hauv pawg no.



Cheebtsam ntawm hydraulic lifting system ntawm Tipper Semi Trailer

Cheebtsam ntawm hydraulic lifting system ntawm pob tseg Semi Trailer.Lub Tipper Semi Trailer tsheb ciav hlau yog tsim los ntawm ib tug tsheb laij teb thiab ib tug semi-trailer. Lub tsheb laij teb txuas nrog lub eeb thiab semi-trailer los tsim ib lub tsheb ciav hlau semi-trailer. Lub Tipper Semi Trailer hydraulic nqa system yog tsim los ntawm lub zog nqa tawm (kev sib kis), hydraulic twj tso kua mis, nqa valve, pneumatic tswj valve, txwv valve, hydraulic lub tog raj kheej, hydraulic roj tank, siab (tsawg) roj yeeb nkab thiab lwm yam. Lub siab-siab roj tso zis los ntawm lub iav twj tso kua mis nkag mus rau lub poppet valve los ntawm cov high-pressure roj yeeb nkab.

Lub lift valve xa cov roj siab mus rau lub tog raj kheej roj los yog tso tawm mus rau hauv lub hydraulic roj tank nyob rau hauv kev tswj ntawm huab cua tswj valve, yog li ua tiav cov haujlwm ntawm kev nqa, nres thiab txo qhov kawg pob tseg trailer hydraulic roj lub tog raj kheej.

Kev ceev faj rau kev khiav hauj lwm hydraulic lifting system ntawm Tipper Semi Trailer
(1) Lub tank hydraulic ntawm lub chassis tipper rau muag auction yog ib qho tshwj xeeb nqa lub tog raj kheej. Tsis txhob siv lub tog raj kheej ua ib qho kev txhawb nqa ruaj khov rau lub cev pob tseg trailer.

(2) Tsis txhob tso lub tog raj kheej rau saum huab cua ntau tshaj 2 teev (ntau tshaj 30 feeb hauv huab cua ntub) hauv lub xeev nqa, txwv tsis pub nws yuav ua rau oxidation thiab xeb ntawm lub tog raj kheej;

(3) Nws yog txwv tsis pub disassemble thiab kho lub valve nyem ntawm lub nqa valve, txwv tsis pub lub hydraulic system yuav poob nws txoj kev tiv thaiv kev nyab xeeb thiab ua rau muaj kev huam yuaj.

(4) Thaum Tipper Semi Trailer muag khoom thauj khoom, peb yuav tsum xyuas kom meej tias lub hauv ntej thiab nraub qaum thiab sab laug thiab sab xis loading yog ib yam. Yog tias koj muaj ntau cov khoom thauj nyob rau hauv pem hauv ntej, nws tuaj yeem overload lub hydraulic system.Ntau cov khoom thauj ntau dhau tom qab 20 & 40 feet Container Tipper Semi Trailer, uas yuav ua rau lub semi kawg tipper trailers rau muag kom ntxeev thaum unloading, thiab sab laug thiab txoj cai ib nrab load yuav yooj yim ua rau lub tog raj kheej mus rau ntxeev.

(5) Thaum tshem tawm, thov xyuas kom meej tias hauv av nyob ib ncig ntawm lub teeb yuag tip trailer yog qhov ruaj khov thiab tiaj tus, ua kom lub kaum sab xis ntawm lub tipper trailer ruaj khov, thiab xyuas kom meej tias lub tsheb loj tipper thiab Scrap Tipper Trailer nyob hauv txoj kab ncaj nraim;

(6) Thaum lub sij hawm lub semi tipper rau muag lifting lag luam, tus neeg teb xov tooj tsis tuaj yeem tawm ntawm qhov chaw ua haujlwm, thiab tsis muaj leej twg tuaj yeem sawv lossis taug kev nyob ib puag ncig ntawm thaj chaw ua haujlwm;

(7) Thaum lub sij hawm lub tipper semi trailer lifting lag luam, tus neeg teb xov tooj yuav tsum tau them sai sai rau lub zog ntawm lateral cua, vim hais tias lub cev ntev ntawm lub tipper semi trailer yuav ua rau lub dumper trailer dov nyob rau hauv cov nyhuv ntawm lateral cua;

(8) Tsis txhob ua kom qhov siab ntawm cov khoom thauj ntau dhau ntawm lub qhov rooj. Nco ntsoov qhib lub qhov rooj xauv lub cuab yeej ua ntej nqa thiab tshem tawm, txwv tsis pub cov khoom thauj yuav muaj neeg coob nyob tom qab ntawm lub tsheb laij teb tipping trailer thiab lub tsheb yuav ntxeev thaum thauj khoom;

(9) Thaum unloading ntawm kub hauv qab no 0 degrees, nws yog ib qho tseem ceeb uas yuav tau xyuam xim rau seb lub cargo khov, txwv tsis pub lub rear tipper semi trailer yuav dov vim tsis sib npaug ntawm sab laug thiab sab xis thaum unloading;

(10) Tsis txhob txav lub tipper semi trailer thaum lub topper semi trailer yog nyob rau hauv lub lifted lub xeev, thiab tsis txhob siv lub ceev ceev braking txoj kev unloading khoom nplaum, txwv tsis pub nws yuav ua rau lub tsheb laij teb tipping trailer dov los yog ua rau cov roj. lub tank;

(11) Yog hais tias lub dumper semi trailer nqa lub kaum sab xis ntawm lub thawv ncav cuag li 25 degrees, thiab cov khoom thauj hauv lub thawv tsis tau muab tshem tawm, thov nres lifting thiab xyuas qhov ua rau ntawm qhov nplaum;

(12) Yog tias qhov kev cia siab tias lub rollover yuav tshwm sim thaum nqa, nco ntsoov nres nqa thiab tso lub tipper semi trailer maj mam;

(13) Tos li 30 vib nas this tom qab schmitt dumper semi trailer lub cev qis dua. Nco ntsoov khaws tus kov ntawm lub tshuab cua tswj valve hauv qhov chaw nres tsheb. Tsis txhob pib lub luag haujlwm hnyav dumper trailer hauv txoj haujlwm qis. Tsis txhob tsav lub dumper semi trailers nyob rau hauv txoj hauj lwm qis. Txwv tsis pub, tag nrho cov dumper semi trailer hydraulic roj hauv lub tog raj kheej hydraulic yuav ntws rov qab rau hauv lub tank hydraulic, ua rau cavitation thiab roj teeb meem.



Yuav ua li cas pov tseg lub Load ntawm Dumper Semi Trailer?

Feem ntau hauv kev siv dumper semi trailer, muaj ntau yam teeb meem me me uas yooj yim rau kev saib xyuas, uas ua rau muaj kev phom sij zais thaum tsav tsheb. Lawv yog cov noteworthy heev. Cov hauv qab no yog qee qhov kev siv tshwj xeeb thiab kev ceev faj thaum ua haujlwm thiab nqa thiab tshem tawm. Kuv xav kom cov phooj ywg Thaum siv nws, xyuas kom zoo thiab ua raws li cov cai hauv qab no.

1. Ua ntej unloading, xyuas kom meej tias tsis muaj neeg nyob rau ntawm ob sab thiab nram qab ntawm lub tipper semi trailer rau muag, thiab xyuas seb lub dumper tsheb trailer rau muag lifting limit device puas lawm.

2. Tom qab lub tipper semi trailers rau muag lifting lag luam tiav, ua ntej tsav tsheb, nco ntsoov tua lub semi dumper trailer fais fab tshem tawm mus rau cais lub hwj chim tshem tawm ntawm lub gearbox thiab nres cov roj twj tso kua mis; tom qab ntawd muab lub valve ua haujlwm ntawm qhov nruab nrab-nres txoj haujlwm kom tsis txhob nqa tsis siv neeg thaum tsav tsheb phom sij.

3. Lub dumper semi trailers rau kev muag khoom tsuas yog tsav tau tom qab lub tsheb thauj mus los rov qab mus rau lub tis sab saum toj ntawm lub sub-thav duab. Vim hais tias lub dumper semi trailers rau kev muag khoom carriage nyob rau hauv lub xeev nqa, nws yog heev yuav ua rau malfunctions thiab xwm txheej.

4. Cov khoom nyob rau hauv lub dumper semi trailers rau muag carriage yog tusyees faib, thiab tsis txhob siv zog los yog pov tseg nrog hnyav ib feem.

5. Txhawm rau ua kom lub iav twj tso kua mis ua haujlwm, ua haujlwm ntawm lub clutch pedal ua ntej, thiab tom qab ntawd tig lub taub hau trailer fais fab tshem tawm kom tsis txhob muaj kev cuam tshuam thaum lub hwj chim tshem tawm cov iav ua haujlwm.

6. Thaum lub dumper semi trailers rau muag yog lifted, lub cav ceev yuav tsum tau tswj nyob rau hauv 2000r / min, tshwj xeeb tshaj yog tom qab lub tshiab tipper trailers rau muag yog nqa mus rau 40 degree, tsis txhob nce lub throttle kom tsis txhob muaj kev puas tsuaj rau lub valve txwv thiab lwm qhov chaw.

7. Thaum lub tsheb thauj mus los, yuav tsum tsis txhob muaj cov chaw lossis cov neeg nyob hauv 5 meters ib ncig ntawm nws, thiab tus neeg tsav tsheb yuav tsum tsis txhob tso cov nplej tippers rau cov tsheb thauj khoom.

8. Thaum lub dumper semi trailers kev muag khoom nyob ze kuv tab tom khiav, lub chassis fais fab tshem tawm yuav tsum nres, thiab phau ntawv ua haujlwm valve yuav tsum nyob rau hauv lub chassis tipper rau muag mid-stop txoj hauj lwm. Nws yog nruj me ntsis txwv tsis pub khiav lag luam phau ntawv valve mus rau qhov nqa thiab txo txoj haujlwm.
